CoxDENS® PP reduction Ø 160 - 125 eccentric

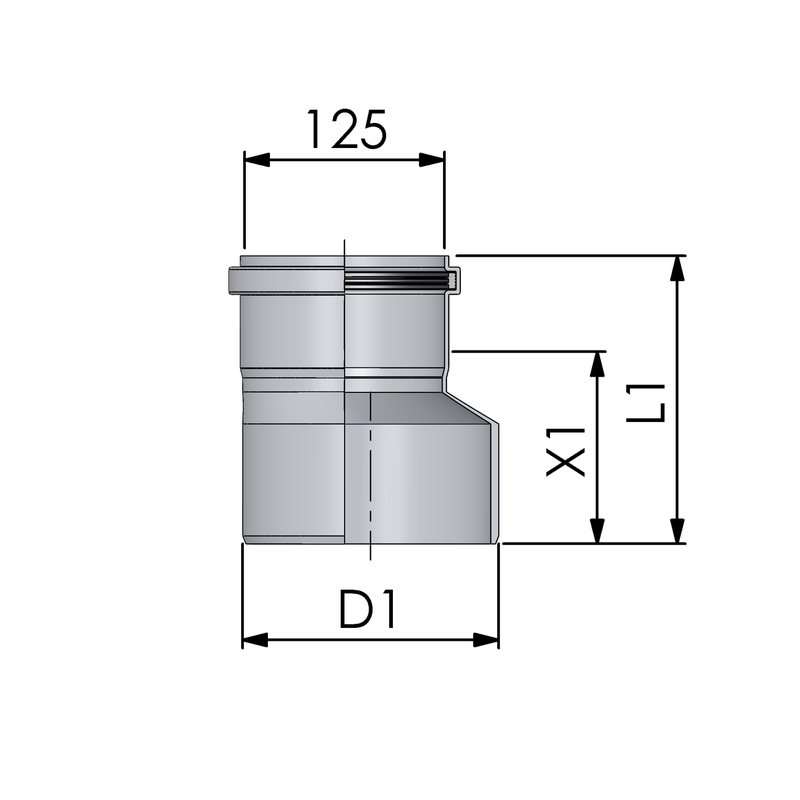

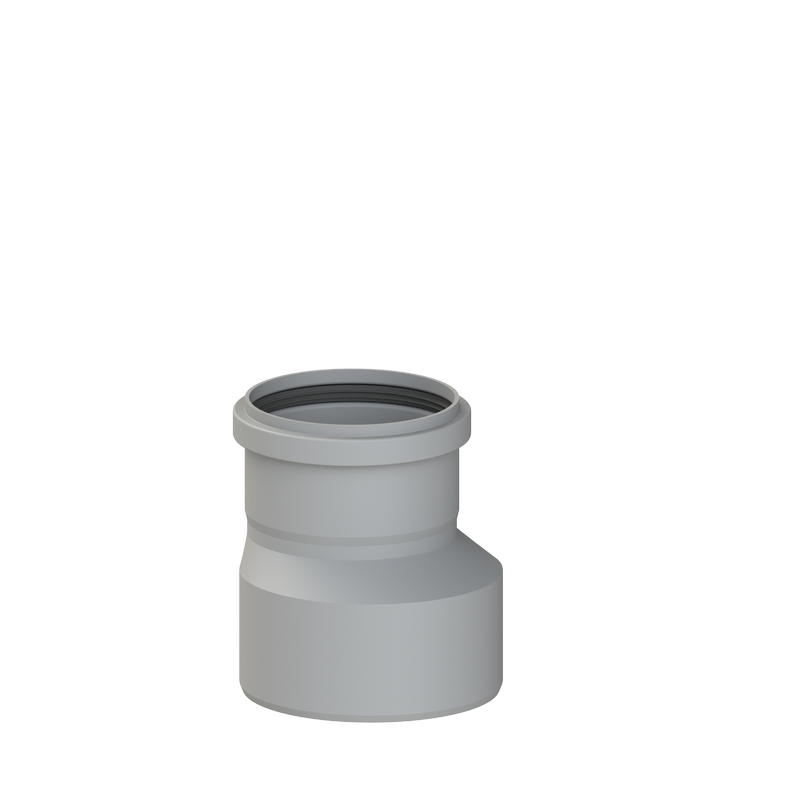

CoxDENS® PP reduction Ø 160 - 125 eccentric
Are you looking for brochures, manuals or videos of this product?
| Article number: | DKHXAA700 |
|---|---|
| Packaging dimensions: | 211 x 211 x 237 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939263795 |
| Gross weight: | 0,51 kg |
| Net weight: | 0,37 kg |
| Inner diameter, connection 1: | 152 mm |
|---|---|
| Inner diameter, connection 2: | 125 mm |
| Length: | 185 mm |
| Length of connection 2: | 180 mm |
| Outer diameter connection 1: | 160 mm |
| Outer diameter connection 2: | 131 mm |
| Working length: | 95 mm |
| Working length connection 2: | 95 mm |
| Adjustable: | No |
| Colour: | Grey |
| Dry (non-condensing): | No |
| Material: | Plastic |
| Material quality: | Polypropylene (PP) |
| Material sealing: | Ethylene-propylene diene monomer rubber (EPDM) |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Number of lips: | 2 |
| Only suitable for air supply: | No |
| Position of lips: | Straight |
| Positive (overpressure): | Yes |
| Production method: | Other |
| RAL-number: | 7037 |
| Shape: | Reduction/enlargement piece |
| Surface protection: | Untreated |
| Surface treatment: | Untreated |
| Wet (condensing): | Yes |
| With clamping strip: | No |
| With lip ring: | Yes |
| With measuring connector: | No |
| With pressure switch: | No |
CoxDENS® PP reduction Ø 160 - 125 eccentric
Available in 2 alternatives
Available spare parts
| Art.nr. | Product |
|---|---|
| CZMBAA500 | EPDM sealing ring Ø 125 for PPs flue gas exhaust products |
Suitable for
CoxDENS® PP roof terminal Ø 125
CoxDENS® PP pipe Ø 160 L500
CoxDENS® PP bend 87° Ø 160
CoxDENS® PP pipe Ø 160 L1000
CoxDENS® PP pipe Ø 125 L1000
CoxDENS® PP pipe Ø 125 L500
CoxDENS® PP bend 87° Ø 125
CoxDENS® PP expansion Ø 150 - 160 centric
CoxDENS® PP bend 30º Ø 160
CoxDENS® PP expansion Ø 160 - 200 eccentric
CoxDENS® PP expansion Ø 125 - 160 eccentric
CoxDENS® PP inspection piece Ø 160
CoxDENS® PP condensation drain Ø 160
CoxDENS® PP measuring point Ø 160
CoxDENS® PP bend 15° Ø 125
CoxDENS® PP bend 45° Ø 160
CoxDENS® PP inspection bend 87° Ø 160
CoxDENS® PP inspection piece Ø 125
CoxDENS® PP condensation drain Ø 125
CoxDENS® PP chimney bend 87° Ø 160 with support
