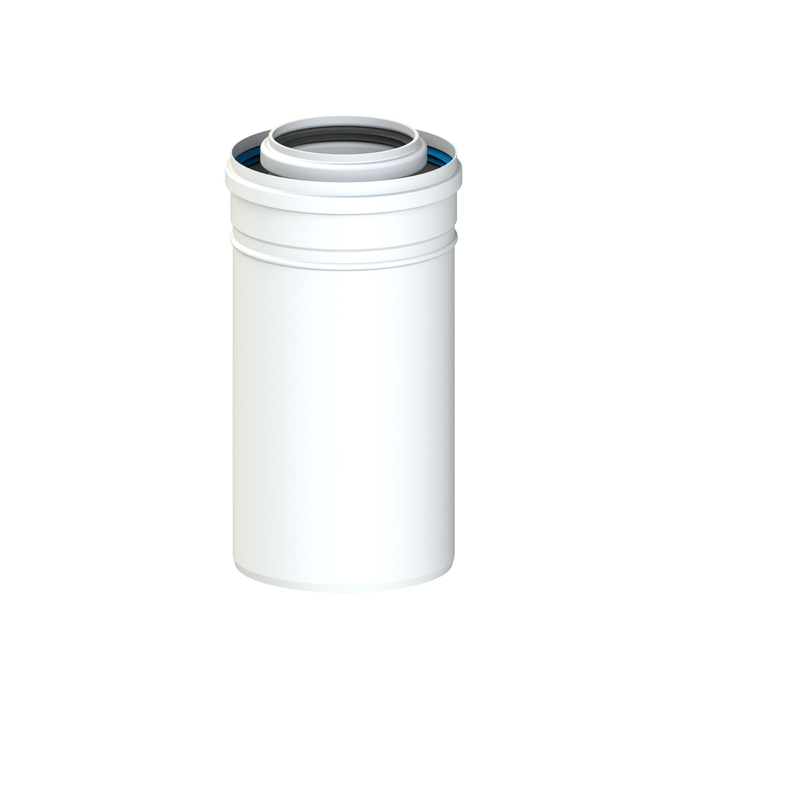

CoxDENS® PP/Alu pipe Ø 100/150 L1000

Are you looking for brochures, manuals or videos of this product?

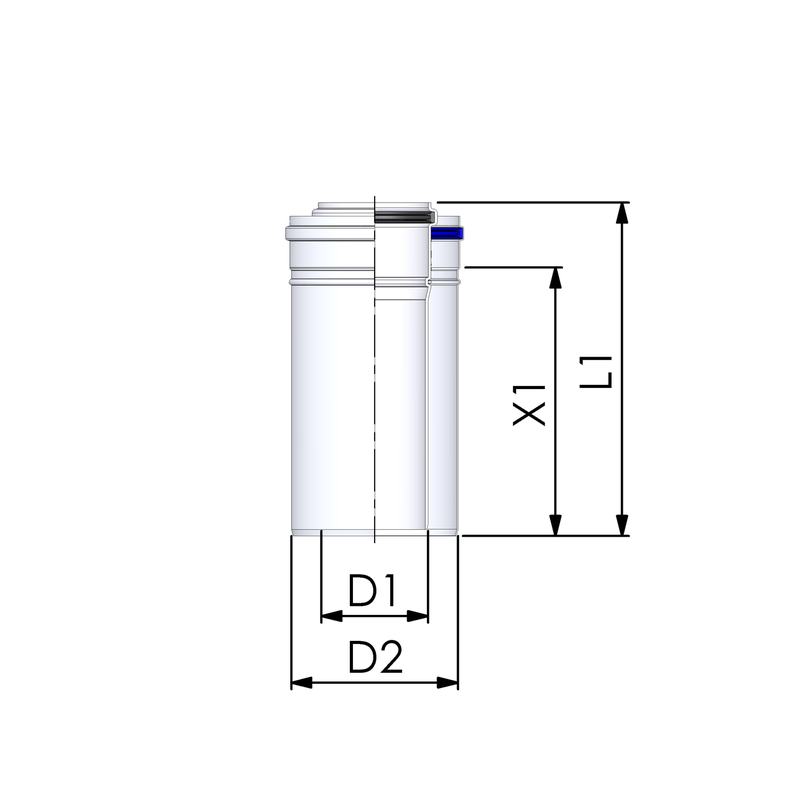

Flue gas and air supply pipe diameter:	100/150 mm
Length:	1000 mm
Wall thickness inner pipe:	2 mm
Working length:	950 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Aluminium
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Outer pipe-outer pipe connection:	Sleeve with seal
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Seamless
Production method for outer pipe:	Seamless weld (butt)
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Other
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
ADADAA601	60/100	9016	250	1	240	840
ADACAA601	60/100	9016	500	1	143	840
ADABAA601	60/100	9016	1000	1	66	840
BDADAA601	80/125	9016	250	1	240	840
BDACAA601	80/125	9016	500	1	110	840
BDABAA601	80/125	9016	1000	1	50	840
CWADAA600	100/150	9016	250	1	126	840
CWACAA600	100/150	9016	500	1	81	840
CWABAA600	100/150	9016	1000	1	36	840
CDADAA600	110/150	9016	250	1	126	840
CDACAA600	110/150	9016	500	1	81	840
CDABAA600	110/150	9016	1000	1	36	840
