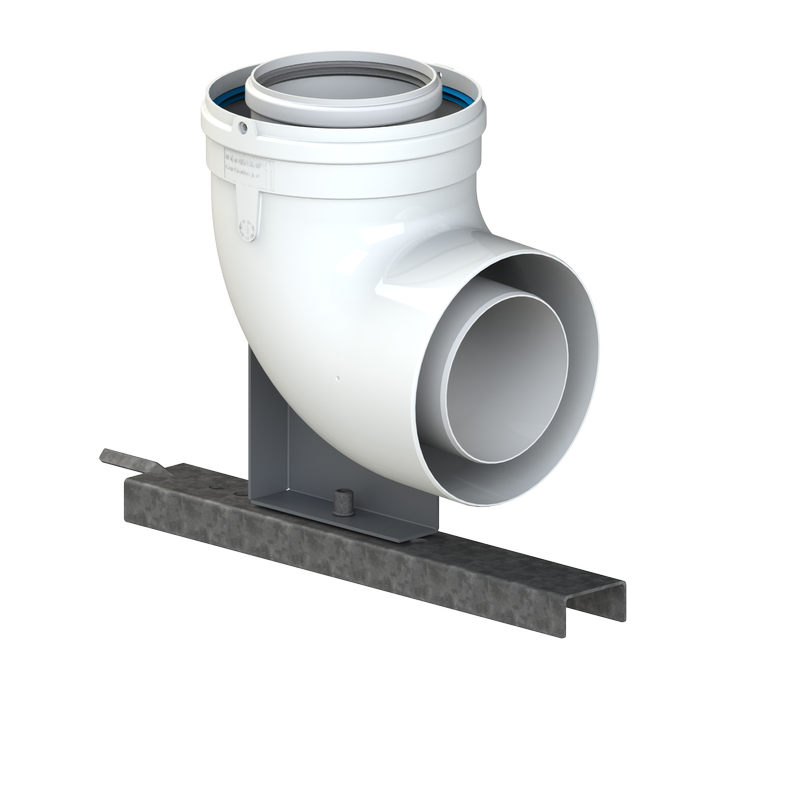

CoxDENS® PP/Alu chimney bend 87° Ø 100/150 with support

Are you looking for brochures, manuals or videos of this product?

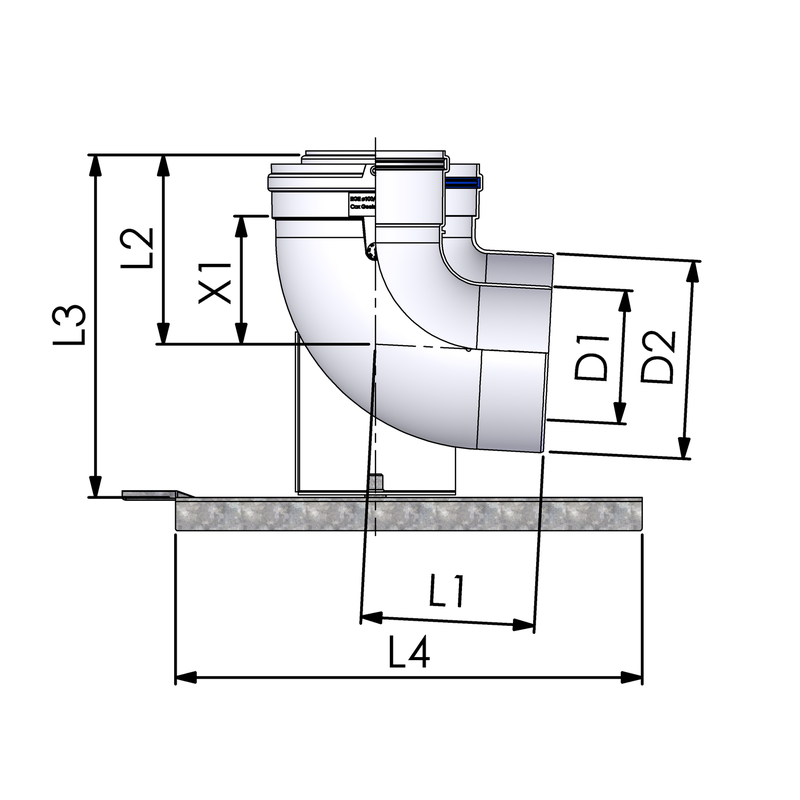

Bend angle:	87°
Diameter connection 1:	100/150 mm
Diameter connection 2:	100/150 mm
Length of connection 1:	130 mm
Length of connection 2:	145 mm
Wall thickness inner pipe:	2 mm
Working length connection 1:	130 mm
Working length connection 2:	100 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Aluminium
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Outer pipe-outer pipe connection:	Sleeve with seal
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Seamless
Production method for outer pipe:	Seamless
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Shape:	Bend
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Other
Wet (condensing):	Yes
With bottom support:	Yes
With clamping strip:	No
With inspection opening and cover:	No
With lip ring:	Yes
With measuring points:	No

Art.nr.	Ø mm	RAL	b	3	c
CWCRAA600	100/150	9016	1	30	840
CDCRAA600	110/150	9016	1	30	840

Art.nr.	Product
CLMBAA700	EPDM sealing ring Ø 100 for CoxDENS® PP flue gas exhaust products
CBMBAA800	Silicon sealing ring Ø 150 for combustion air inlet

Suitable for
