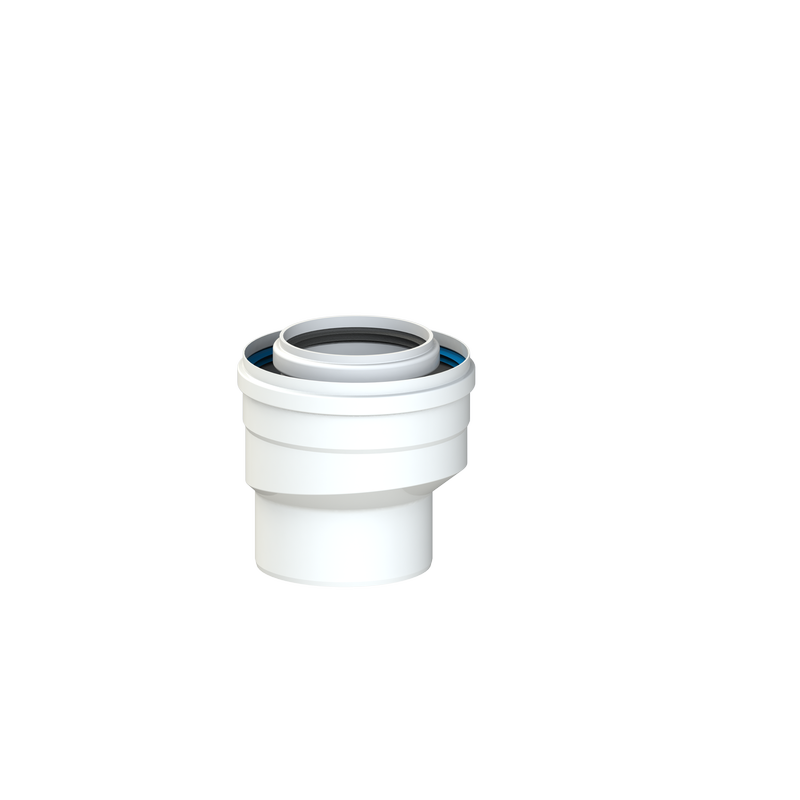

CoxDENS® PP/Alu expansion Ø 60/100 - 80/125 eccentric

Are you looking for brochures, manuals or videos of this product?

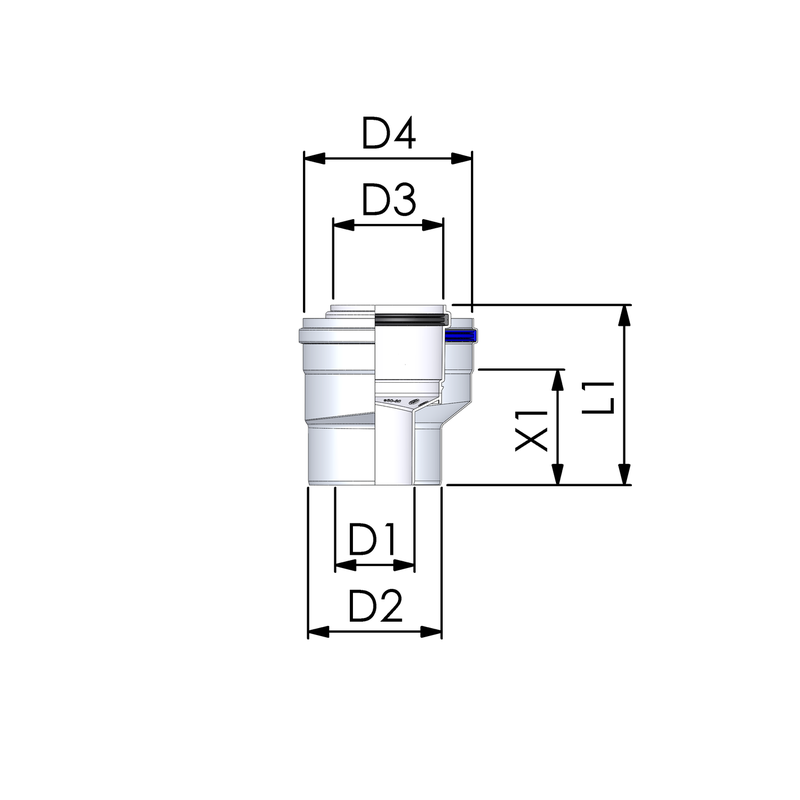

Diameter connection 1:	60/100 mm
Diameter connection 2:	80/125 mm
Length of connection 1:	175 mm
Wall thickness inner pipe:	1.8 mm
Working length connection 1:	125 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Aluminium
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Outer pipe-outer pipe connection:	Sleeve with seal
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Other
Production method for outer pipe:	Other
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Shape:	Reduction/enlargement piece
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Other
Wet (condensing):	Yes
With bottom support:	No
With clamping strip:	No
With inspection opening and cover:	No
With lip ring:	Yes
With measuring points:	No

Art.nr.	Ø mm	RAL	b	3	c
BDENAA601	60/100 - 80/125	9016	1	315	884

Art.nr.	Product
BKMBAA501	EPDM sealing ring Ø 80 for CoxDENS® PP flue gas exhaust products
BBMBAA800	Silicon sealing ring Ø 125 for combustion air inlet
