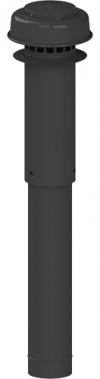

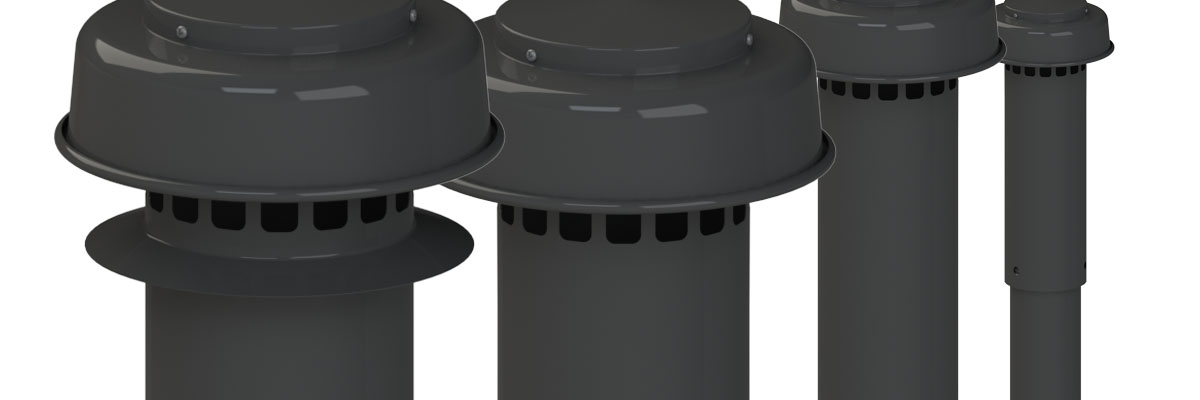

CoxTrek® Ventilation roof terminals
The CoxTrek® roof terminals are designed for the natural and mechanical ventilation of kitchens, bathrooms and toilets.
They are suitable for both aeration and de-aeration.
![](https://www.coxgeelen.com/media/7cd696a9b7b5bc1ef9eec5b410045ad7/coxtrek-ddv-mv-nv-1200x400px.jpg?t=1642757097)
![](https://www.coxgeelen.com/media/6973755d1cd692e30735e1910e8c6301/coxtrek-ddv-mv-nv-250x500px.jpg?t=1642757177)
The CoxTrek® for mechanical ventilation (MV) is available in Ø 100, 150, 180, 200, 250 and 300 mm.
The CoxTrek® for natural (NV) and mechanical ventilation (MV) is available in Ø 125 mm.
Characteristics
- Exceptionally low own resistance.
- Positive draught even at low wind speed.
- Underpressure in the outlet pipe compared to the environment.
- No flowback in the pipe.
- Any condensation formed in the upper part of the roof is drained above the roof surface.
- Minimal icicle formation as the condensation is drained via 3 holes.
- No leakage of condensation water into the under-roof area.
At the end of their lifecycle these products can be completely recycled.
Specifications
- Hood is made of aluminium.
- Outer pipe is made of hot dip galvanized steel.
- Available in black RAL 9005.
