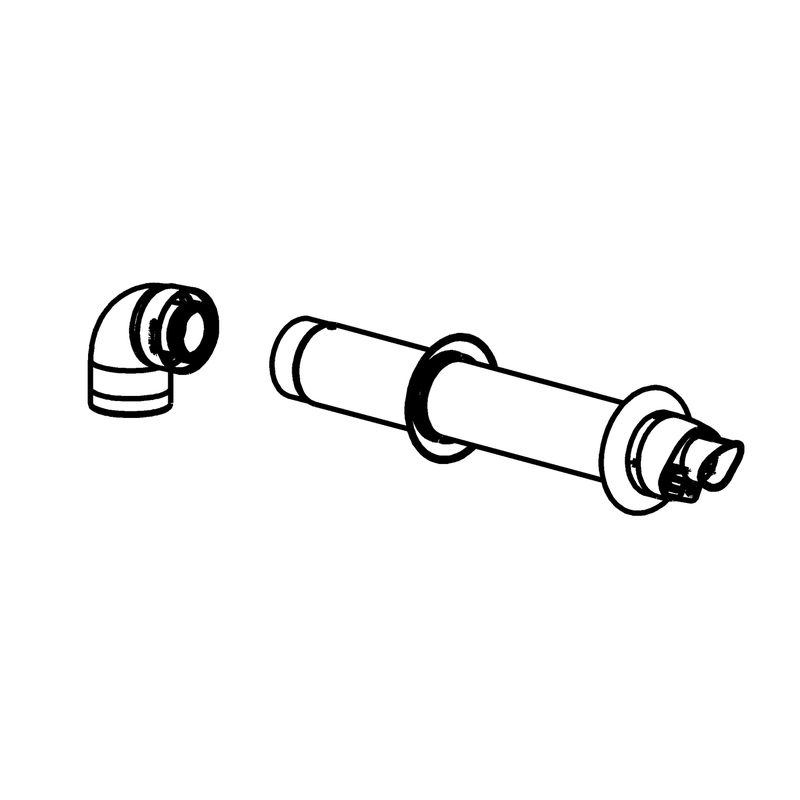

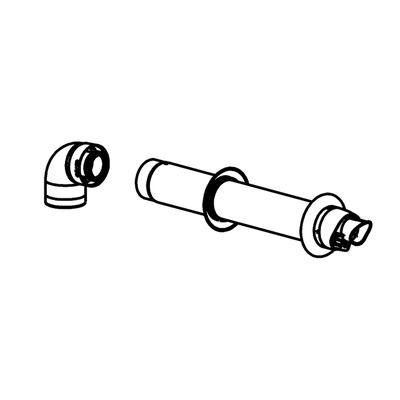

ECONEXT® wall terminal kit 2.0 telescop. Ø60/100 L460-620 PP flue pipe
ECONEXT® wall terminal kit 2.0 telescop. Ø60/100 L460-620 PP flue pipe
Are you looking for brochures, manuals or videos of this product?
| Article number: | AJPJAA601 |
|---|---|
| Packaging dimensions: | 800 x 160 x 130 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939266642 |
| Gross weight: | 1,399 kg |
| Net weight: | 1,114 kg |
| Diameter of concentric system: | 60/100 mm |
|---|---|
| Façade side length: | 154 mm |
| Total length: | 620 mm |
| Dry (non-condensing): | No |
| Façade side colour: | Grey |
| Icicle/icing-free: | Yes |
| Inside colour: | White |
| Material air supply pipe: | Plastic |
| Material flue pipe: | Plastic |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Only suitable for air supply: | No |
| Outflow construction: | 1-pipe |
| Positive (overpressure): | Yes |
| Quality class flue pipe: | Polypropylene (PP) |
| RAL-number façade side: | 7001 |
| RAL-number inside: | 9016 |
| Type of system: | Concentric |
| Wet (condensing): | Yes |
ECONEXT® wall terminal kit 2.0 telescop. Ø60/100 L460-620 PP flue pipe
Available in 1 alternatives
| Art.nr. | Ø mm | RAL | Length (mm) | b | 3 | c |
|---|---|---|---|---|---|---|
| AJPJAA601 | 60/100 | 9016 | 620 | 1 | 84 | 866 |
