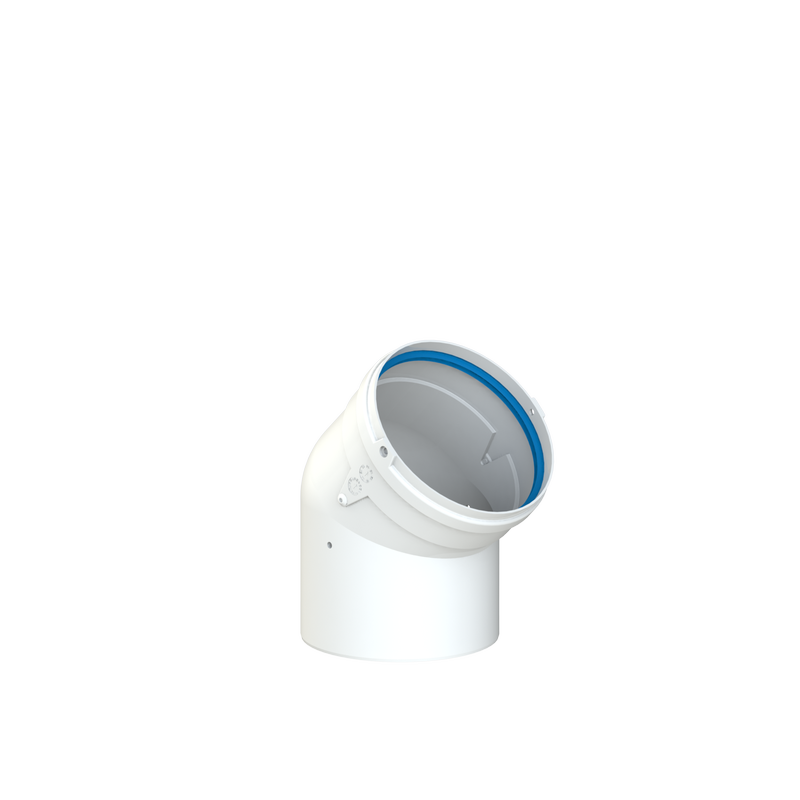

CoxCuisine® Aluminium bend 45º Ø 125 RAL 9010
CoxCuisine® Aluminium bend 45º Ø 125 RAL 9010
Are you looking for brochures, manuals or videos of this product?
| Article number: | 224225 |
|---|---|
| Packaging dimensions: | 201 x 201 x 152 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939006781 |
| Gross weight: | 0,49 kg |
| Net weight: | 0,39 kg |
| Bend angle: | 45° |
|---|---|
| Insert length: | 40 mm |
| Nominal duct diameter: | 125 mm |
| Working length connection 1: | 80 mm |
| Working length connection 2: | 40 mm |
| Anti-bacterial treatment: | No |
| Antistatic version: | No |
| Bend model: | Smooth bend |
| Bend radius (number x D): | 62.5 |
| Connection 1: | Insert end |
| Connection 2: | Other |
| Embeddable in concrete: | Yes |
| Inner surface protection: | Untreated |
| Material duct: | Aluminium |
| Model: | Other |
| Outer surface protection: | Untreated |
| Outside colour: | White |
| Perforated inner wall: | No |
| Production method: | Seamless |
| Wall thickness duct: | 1.5 mm |
| With pre-mounted seal: | Yes |
| With push-on clamp: | No |
| With push-on profile: | No |
CoxCuisine® Aluminium bend 45º Ø 125 RAL 9010
Available in 1 alternatives

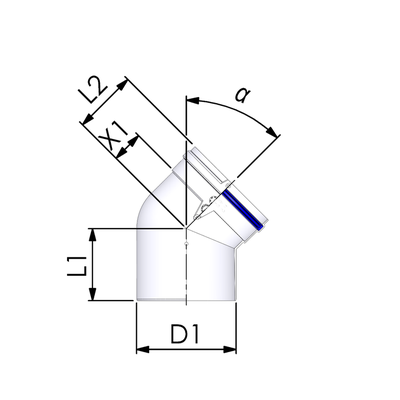

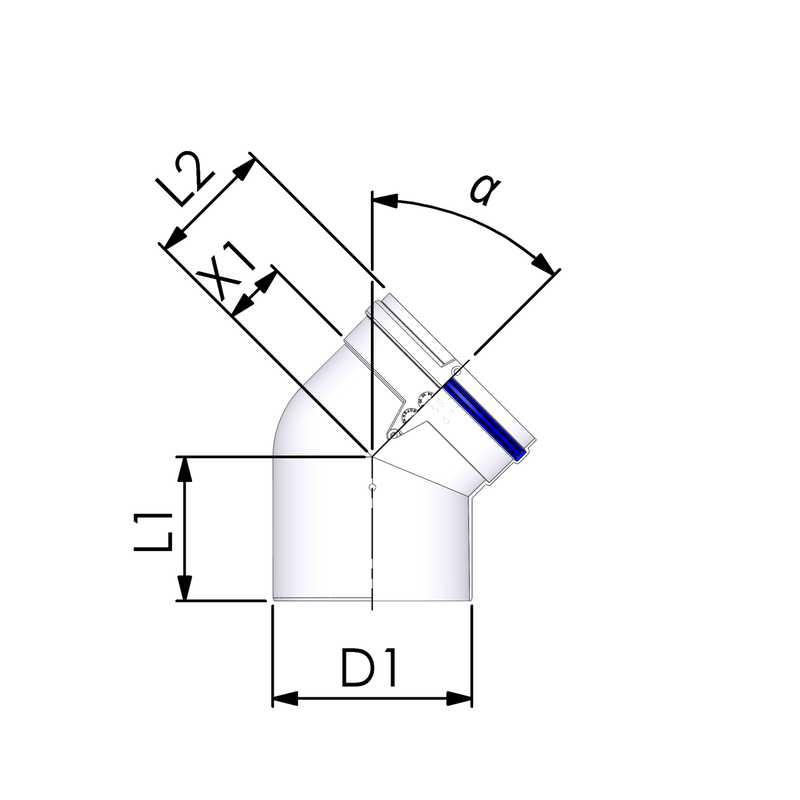

| Art.nr. | Ø mm | RAL | b | 3 | c |
|---|---|---|---|---|---|
| 224225 | 125 | 9010 | 1 | 240 | 150 |
Suitable for
CoxCuisine® Aluminium outlet pipe L250 Ø 125 RAL 9010
CoxCuisine® Aluminium pipe L1000 Ø 125 RAL 9010
CoxCuisine® Aluminium adjustable pipe Ø 125 RAL 9010
CoxCuisine® Aluminium bend 87º Ø 125 RAL 9010
