Wall terminal condensing single wall - 1-pipe outlet ›

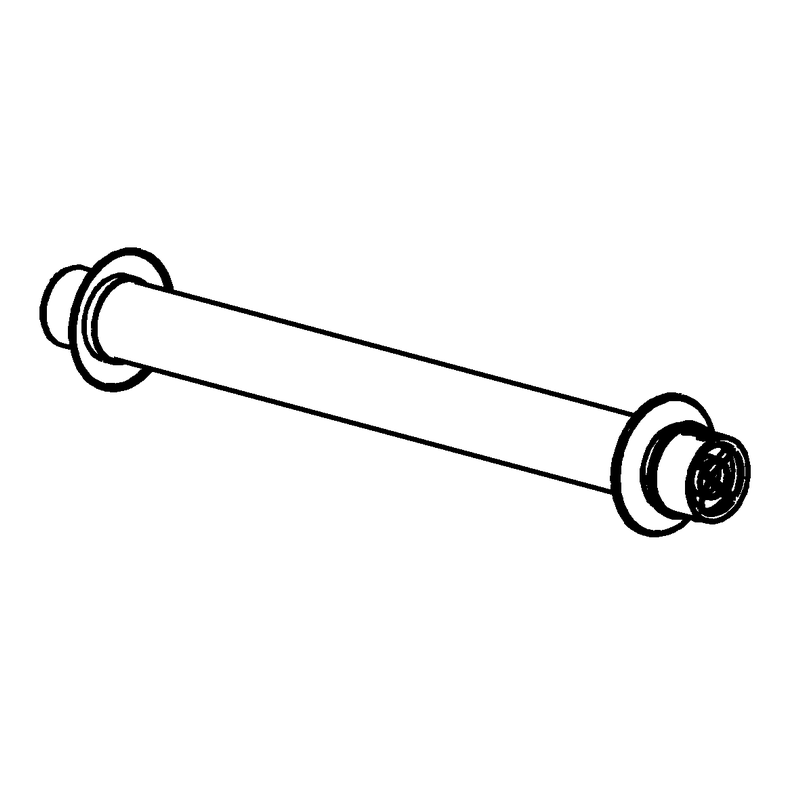

Wall terminal PP combustion air inlet Ø 80 with 2 wall plates
Wall terminal PP combustion air inlet Ø 80 with 2 wall plates
Are you looking for brochures, manuals or videos of this product?
| Article number: | BKBFAA501 |
|---|---|
| Packaging dimensions: | 1006 x 106 x 112 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939262965 |
| Gross weight: | 0,82 kg |
| Net weight: | 0,62 kg |
| Diameter of single-walled system: | 80 mm |
|---|---|
| Façade side length: | 34 mm |
| Total length: | 914 mm |
| Dry (non-condensing): | No |
| Façade side colour: | Black |
| Icicle/icing-free: | No |
| Inside colour: | Black |
| Material air supply pipe: | Plastic |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Only suitable for air supply: | Yes |
| Outflow construction: | 1-pipe |
| Positive (overpressure): | Yes |
| Quality class flue pipe: | Polypropylene (PP) |
| RAL-number façade side: | 9005 |
| RAL-number inside: | 9005 |
| Surface protection air supply pipe: | Untreated |
| Surface treatment air supply pipe: | Untreated |
| Type of system: | Single-walled |
| Wet (condensing): | Yes |
Wall terminal PP combustion air inlet Ø 80 with 2 wall plates
Available in 1 alternatives
| Art.nr. | Ø mm | RAL | Length (mm) | b | 3 | c |
|---|---|---|---|---|---|---|
| BKBFAA501 | 80 | 9005 | 914 | 1 | 98 | 861 |
