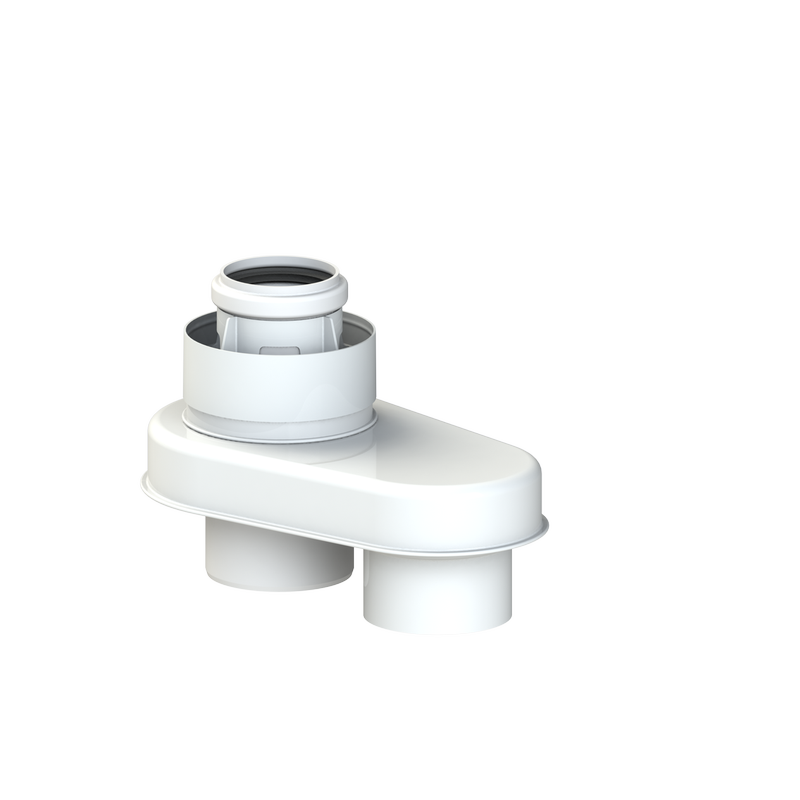

CoxDENS® PP/Plastic adapter Ø 80/80 - 60/100 with CONNEXT® X3
CoxDENS® PP/Plastic adapter Ø 80/80 - 60/100 with CONNEXT® X3
Are you looking for brochures, manuals or videos of this product?
| Article number: | AJLYAA601 |
|---|---|
| Packaging dimensions: | 291 x 216 x 172 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939260855 |
| Gross weight: | 1,29 kg |
| Net weight: | 1,14 kg |

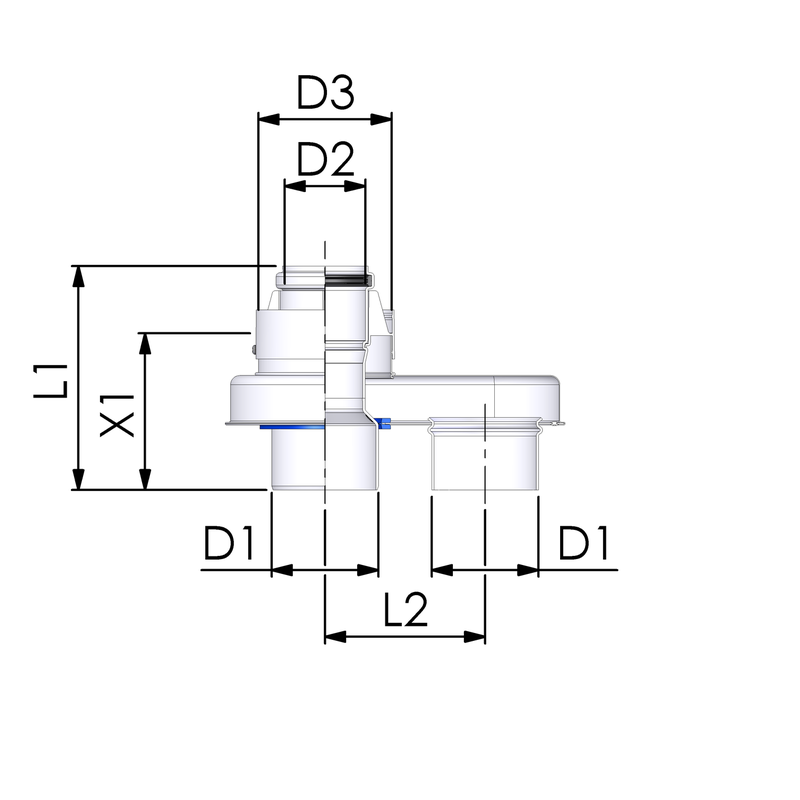

| Distance centre-to-centre: | 120 mm |
|---|---|
| Nominal duct diameter, top: | 60/100 mm |
| Nominal duct diameter, underside: | 80/80 mm |
| Working length: | 118 mm |
| Coated: | Yes |
| Material: | Plastic |
| System connection, underside/top: | Parallel/concentric |
| With measuring points: | No |
CoxDENS® PP/Plastic adapter Ø 80/80 - 60/100 with CONNEXT® X3
Available in 1 alternatives
| Art.nr. | Ø mm | b | 3 | c |
|---|---|---|---|---|
| AJLYAA601 | 80/80 - 60/100 | 1 | 126 | 884 |
Suitable for
CoxDENS® PP/Plastic fire resistant wall plate Ø60/100 fire seal and X3
CoxDENS® PP/Plastic measuring point Ø 60/100 with CONNEXT® X3
CoxDENS® PP/Plastic pipe Ø 60/100 L1000 with CONNEXT® X3
Aluminium fixation bracket Ø 100 white
CoxDENS® PP/Plastic pipe Ø 60/100 L500 with CONNEXT® X3
CoxDENS® PP/Alu inspection piece Ø 60/100 with CONNEXT® X3
CoxDENS® PP/Plastic pipe Ø 60/100 L250 with CONNEXT® X3
CoxDENS® PP/Plastic bend 87° short + 2 meas.points Ø 60/100 CONNEXT®X3
