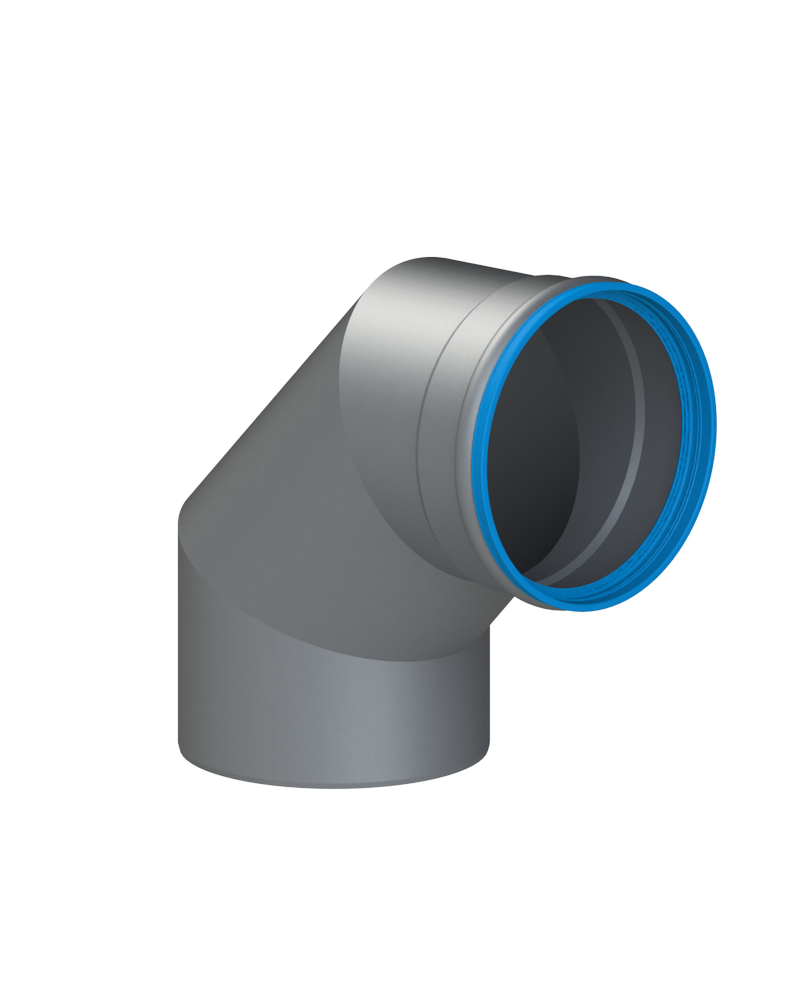

CoxFix® Alu segmental bend 87º Ø 250 unpainted Fix-Safe sealing ring
CoxFix® Alu segmental bend 87º Ø 250 unpainted Fix-Safe sealing ring
Are you looking for brochures, manuals or videos of this product?
| Article number: | 254251 |
|---|---|
| Packaging dimensions: | 600 x 400 x 775 mm |
| Quantity per pack: | 3 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 3 stuks |
| GTIN: | 08711939010337 |
| Gross weight: | 2,16 kg |
| Net weight: | 1,74 kg |

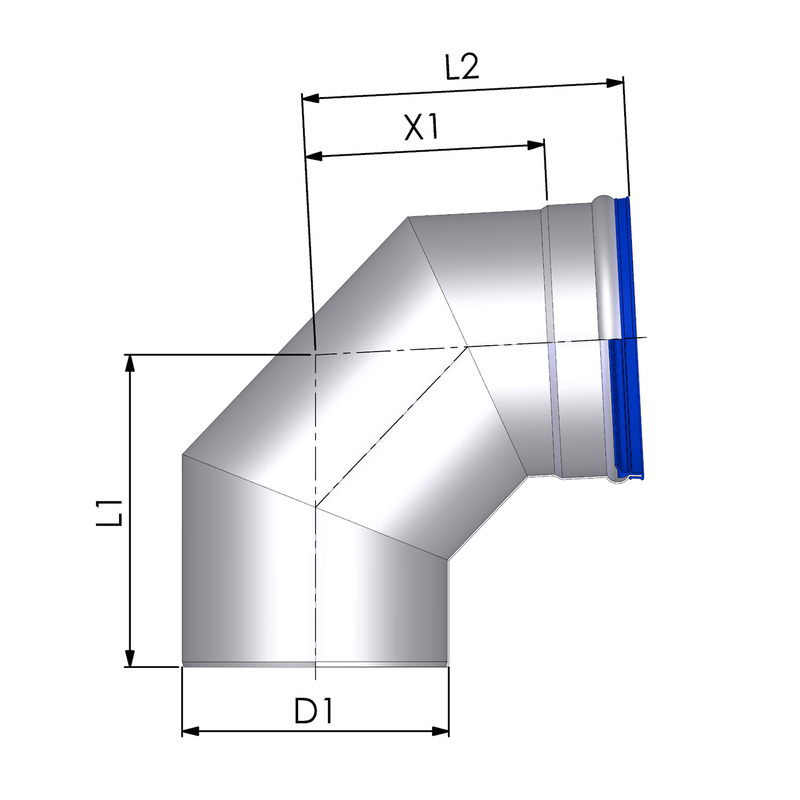

| Bend angle: | 87° |
|---|---|
| Bend radius: | 250 mm |
| Inner diameter, connection 1: | 247 mm |
| Inner diameter, connection 2: | 254 mm |
| Length: | 600 mm |
| Length of connection 1: | 300 mm |
| Length of connection 2: | 300 mm |
| Outer diameter connection 1: | 250 mm |
| Outer diameter connection 2: | 257 mm |
| Wall thickness: | 1.5 mm |
| Working length: | 525 mm |
| Working length connection 1: | 300 mm |
| Working length connection 2: | 225 mm |
| Adjustable: | No |
| Bend model: | Segmental bend |
| Dry (non-condensing): | Yes |
| Material: | Aluminium |
| Material quality: | Al 99.5 (3.0255) |
| Material sealing: | Silicone |
| Max. medium temperature (continuous): | 200 °C |
| Negative (negative pressure): | Yes |
| Number of lips: | 2 |
| Only suitable for air supply: | No |
| Position of lips: | Straight |
| Positive (overpressure): | Yes |
| Production method: | Longitudinal welded joint |
| Shape: | Bend |
| Surface protection: | Untreated |
| Surface treatment: | Untreated |
| Wet (condensing): | Yes |
| With clamping strip: | No |
| With lip ring: | Yes |
| With measuring connector: | No |
| With pressure switch: | No |
CoxFix® Alu segmental bend 87º Ø 250 unpainted Fix-Safe sealing ring
Available in 1 alternatives
| Art.nr. | Ø mm | b | 3 | c |
|---|---|---|---|---|
| 254251 | 250 | 3 | 24 | 831 |
