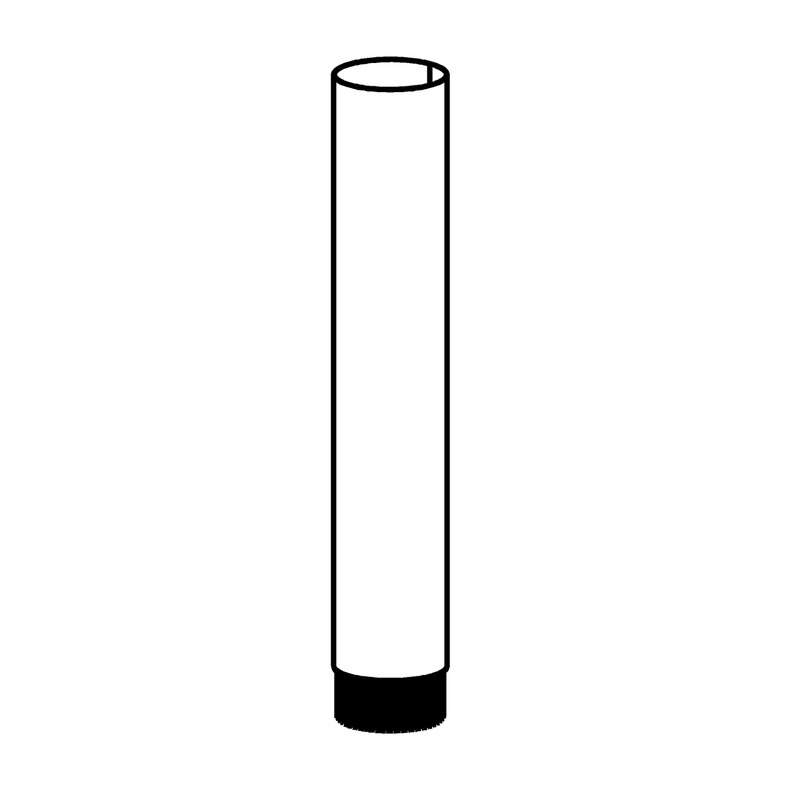

Blued steel flue gas pipe L1000 Ø 125
Blued steel flue gas pipe L1000 Ø 125
Are you looking for brochures, manuals or videos of this product?
| Article number: | 101125 |
|---|---|
| Packaging dimensions: | 396 x 296 x 1012 mm |
| Quantity per pack: | 6 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 6 stuks |
| GTIN: | 08711939002042 |
| Gross weight: | 1,75 kg |
| Net weight: | 1,63 kg |
| Inner diameter, connection 1: | 123 mm |
|---|---|
| Inner diameter, connection 2: | 125 mm |
| Length: | 1000 mm |
| Outer diameter: | 125 mm |
| Outer diameter connection 1: | 124 mm |
| Outer diameter connection 2: | 126 mm |
| Wall thickness: | 0.5 mm |
| Working length: | 950 mm |
| Colour: | Black |
| Dry (non-condensing): | Yes |
| Material: | Steel |
| Material quality: | Other |
| Max. medium temperature (continuous): | 250 °C |
| Negative (negative pressure): | Yes |
| Only suitable for air supply: | No |
| Positive (overpressure): | No |
| Production method: | Longitudinal rebated joint |
| Surface protection: | Blue-annealed |
| Surface treatment: | Untreated |
| Wet (condensing): | No |
| With clamping strip: | No |
| With lip ring: | No |
| With pull-out protection: | No |
Blued steel flue gas pipe L1000 Ø 125
Available in 7 alternatives
Suitable for
Blued steel flue gas bend 45º Ø 125
Blued steel flue gas bend 90º Ø 125
Blued steel wall plate Ø 125
Blued steel expansion Ø 111 - 125
