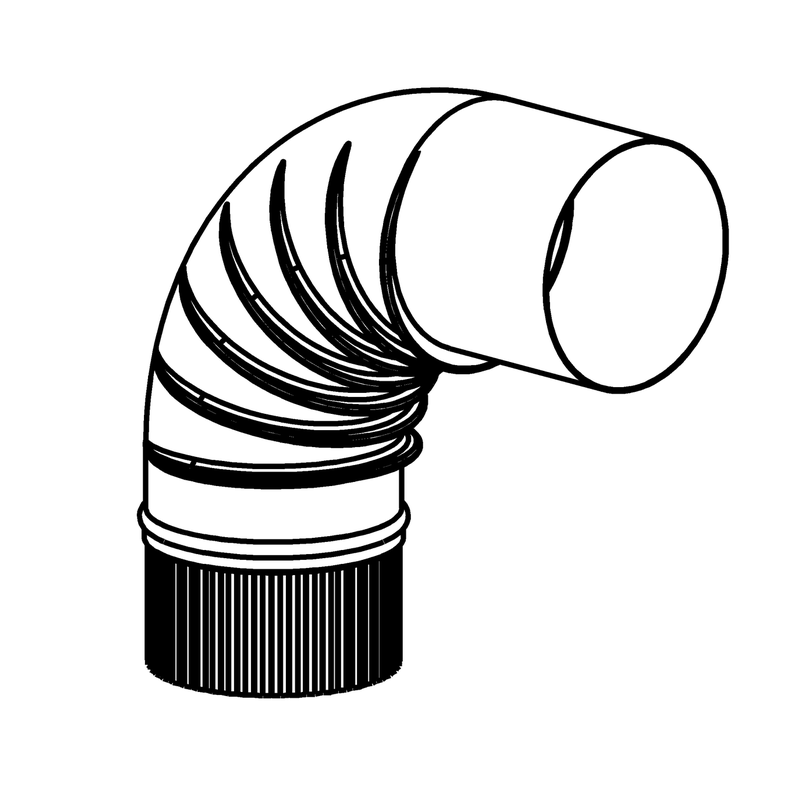

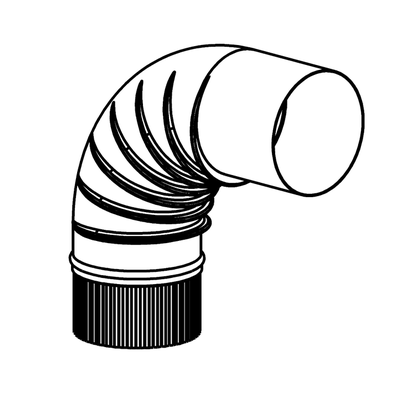

Blued steel flue gas bend 90º Ø 150
Blued steel flue gas bend 90º Ø 150
Are you looking for brochures, manuals or videos of this product?
| Article number: | 102150 |
|---|---|
| Packaging dimensions: | 600 x 400 x 775 mm |
| Quantity per pack: | 8 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 8 stuks |
| GTIN: | 08711939002158 |
| Gross weight: | 1,152 kg |
| Net weight: | 0,967 kg |
| Bend angle: | 90° |
|---|---|
| Bend radius: | 150 mm |
| Inner diameter, connection 1: | 148 mm |
| Inner diameter, connection 2: | 150 mm |
| Length: | 440 mm |
| Length of connection 1: | 220 mm |
| Length of connection 2: | 220 mm |
| Outer diameter connection 1: | 149 mm |
| Outer diameter connection 2: | 151 mm |
| Wall thickness: | 0.5 mm |
| Working length: | 390 mm |
| Working length connection 1: | 220 mm |
| Working length connection 2: | 170 mm |
| Adjustable: | No |
| Bend model: | Wrinkled bend |
| Colour: | Black |
| Dry (non-condensing): | Yes |
| Material: | Steel |
| Material quality: | Other |
| Max. medium temperature (continuous): | 250 °C |
| Negative (negative pressure): | Yes |
| Only suitable for air supply: | No |
| Positive (overpressure): | No |
| Production method: | Longitudinal welded joint |
| Shape: | Bend |
| Surface protection: | Blue-annealed |
| Surface treatment: | Untreated |
| Wet (condensing): | No |
| With clamping strip: | No |
| With lip ring: | No |
| With measuring connector: | No |
| With pressure switch: | No |
| With temperature limit: | No |
Blued steel flue gas bend 90º Ø 150
Available in 7 alternatives
Suitable for
Blue annealed steel expansion Ø 111 - 150
Blued steel expansion Ø 125 - 150
Blued steel expansion Ø 131 - 150
Blued steel expansion Ø 150 - 200
